Intelligent Servo Oil Pumping equipment Super power saving and long using life
15 years of professional reform experience create brilliant in market
Based on Electro-hydraulic Servo Technology
聚焦工业自动化和节能环保领域
Focus on industrial automation, energy conservation and environmental protection
坚持为细分市场的价值客户提供创新的解决方案
Adhere to provide innovative solutions for value customers in the market segments
1. Intelligent Servo Oil Pumping System project
After the submersible servo motor and pump unit is lowered down into the well, the power is transmitted through by the power cable to the servo motor to drive the screw pump and raised up the fluid onto the ground. The servo motor speed is controlled by servo driver

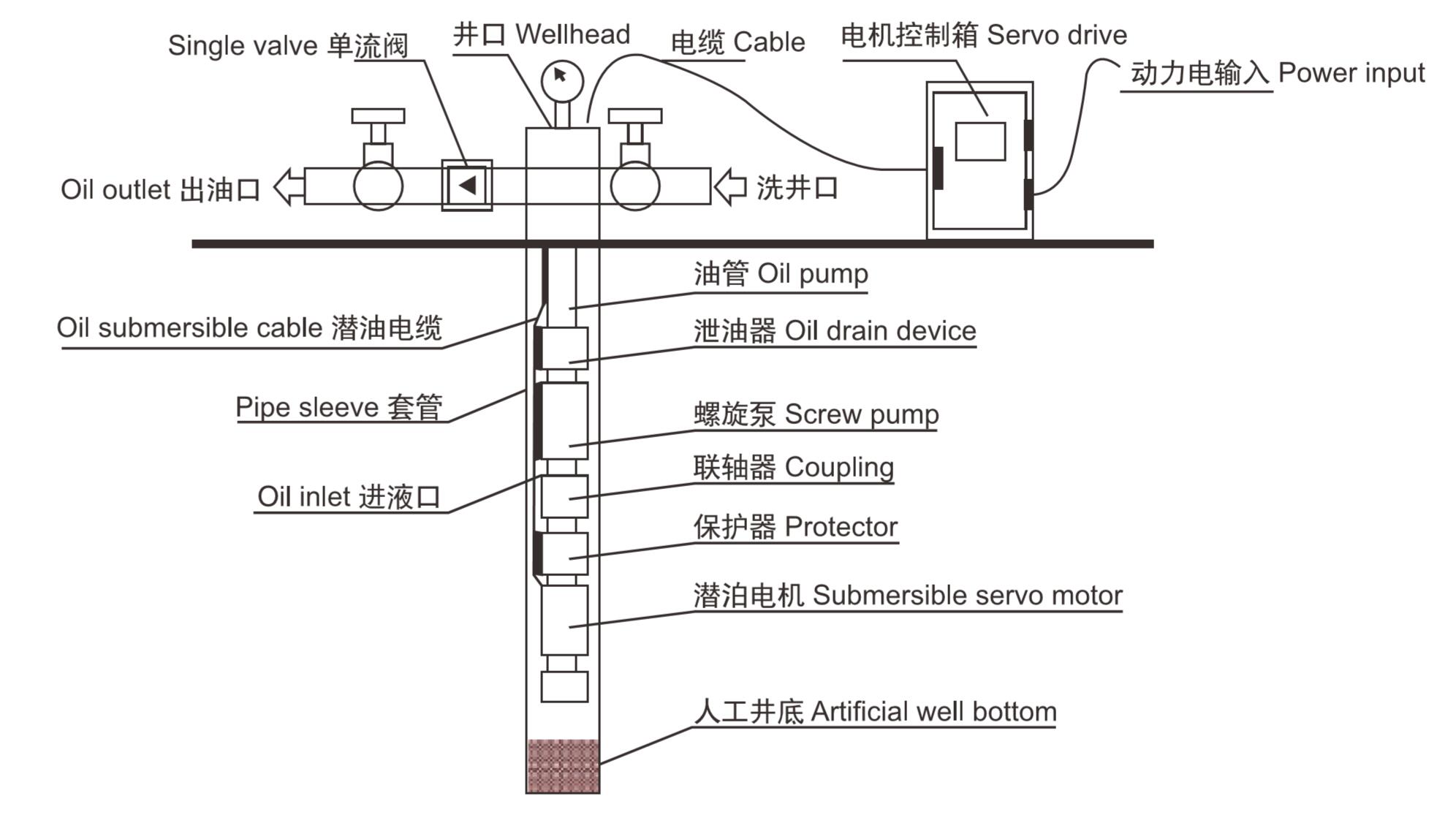

2. Servo Oil Pumping System Flow Char
After many years of research and improvement, lots of break-through in the design and manufacture of servo drives, submersible motor, coupling and many other key technologies. Finally, the successful development of submersible servo oil pumping system

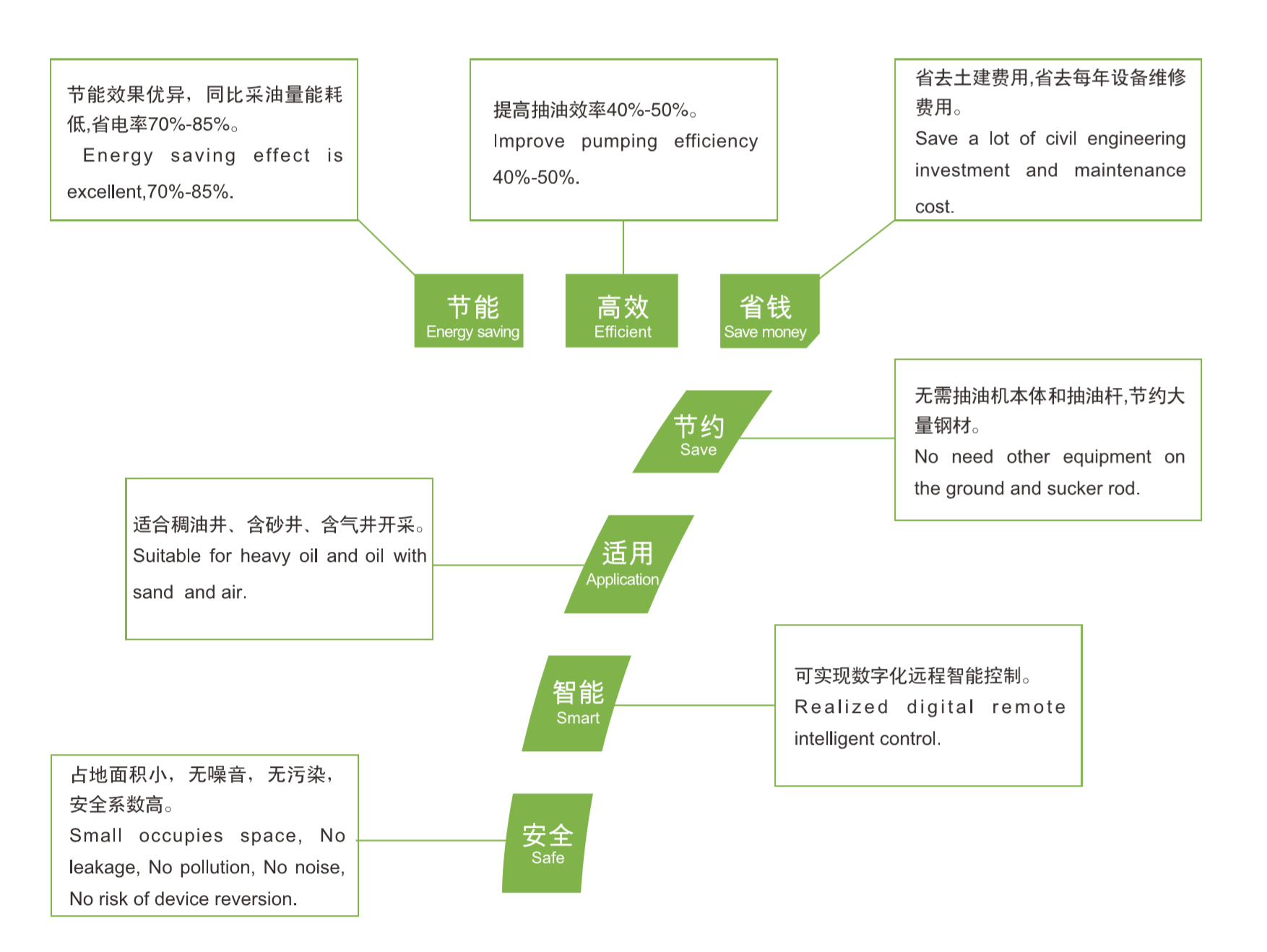

3. Advantage
1) Energy saving effect is excellent,70%-85%
2) Improve pumping efficiency 40%-50%
3) Save a lot of civil engineering investment and maintenance cost
4) No need other equipment on the ground and sucker rod
5) Suitable for heavy oil and oil with sand and air
6) Realized digital remote intelligent control
7) Small occupies space, No leakage, No pollution, No noise, No risk of device reversion
4. Process of installation

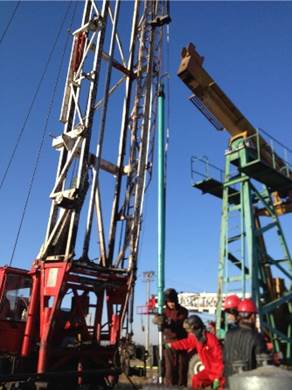

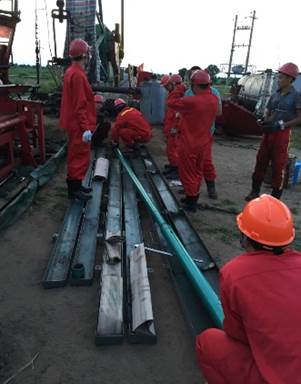

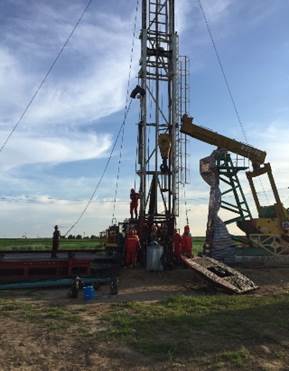

1) Submersible servo motor and screw pump installation ( about 2 days)
2) Servo driver ( testing about 1 day)
5. Oil field servo pumping retrofitting

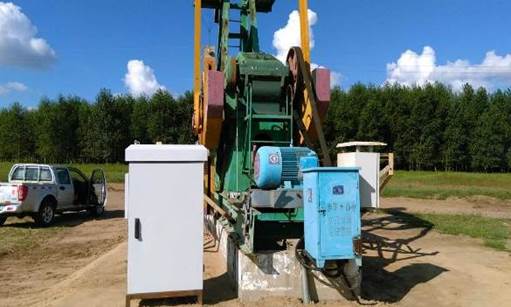

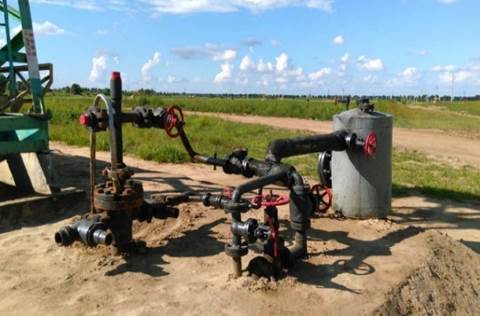

Before After servo retrofitting
| Oil pumping equipment | Sucker Rod¢22 | Space m² | Wellhead leakage | Noise | Rotating parts | Motor power | Equipment weight |
| Conventional pumping unit | 3.3T/1000m | 25 | YES | YES | YES | 37 KW | 20T |
| Intelligent Servo Oil Pumping System | NO | 5 | NO | NO | NO | 7.5 KW | ˂ 1 T |
6. Promise
If the energy saving rate is not good, don’t need to pay
If the servo system performance is not good, don’t need to pay
If the installation service is not good, don’t need to pay
The desire to save energy is delivered to us, SEBOS is your loyal parter
