Servo system remolding of Hydraulic Injection molding machine Super power saving
15 years of professional reform experience create brilliant in market
1. Injection molding machine servo energy saving retrofitting project
Under the same pressure and flux as the old machine, we full consider to the use of the stability, and supply the servo system with bigger motor torque and driver power , light overload to make sure the machine running stability.
2. Advantage
1) Super electric power saving: energy saving rate 30%-80%
2) Super stability performance : Widely speed rang and strong overload capacity
3) Voltage range: 330V-600V
4) Both have motor KTY and PTC overheating protection function
5) Many additional green values: Extend the using life of injection molding machine parts, Low noise, Reduce the use of cooling water
6) We supply the whole completed servo system:Including servo driver, servo motor, SUMITOMO gear pump, electric cabinet, electric resistance, pressure sensor, magnet ring, press-flow shields semaphore wire, power cable, oil flange, oil suction pipe, semaphore converts board, U-steel and so on
7) Fast installation service: 100T-1500T machine takes 2 days to install servo energy saving system; 1500-3000T takes 4 days to install servo energy saving system
8) Our team have extensive experiences of servo retrofitting to the machine brandMITSUBISHI,TOSHIBA, NISSEI, JSW, MEIKI, SUMITOMO, UBE, LS, SEIEX, HAITIAN, BORCHE, CHEN-HSONG and so on
3. Specification
| SEBOS Servo Energy Saving System Specification |
| Servo system model | Pressure | Flux | Servo motor | Pump | Servo driver |
| MPA | L/min | Model | KW | Model | cc/r | Model | KW |
| SES-18067-SNS | 17.5 | 74 | SM065-17Z | 11.6 | QT4N-32 | 32 | SES800Ⅱ-4T15 | 15 |
| SES-18084-SNS | 17.5 | 94 | SM085-17Z | 15.1 | QT4N-40 | 40 | SES800Ⅱ-4T18K | 18 |
| SES-18105-SNS | 17.5 | 118 | SM105-17Z | 18.7 | QT5N-50 | 50 | SES800Ⅱ-4T22 | 22 |
| SES-18132-SNS | 17.5 | 148 | SM145-15Z | 22.8 | QT5N-63 | 63 | SES800Ⅱ-4T30 | 30 |
| SES-18168-SNS | 17.5 | 168 | SM170-17Z | 30.2 | QT6N-80 | 80 | SES800Ⅱ-4T37K | 37 |
| SES-18220-SNS | 17.5 | 220 | SM220-17Z | 39.2 | QT6N-100 | 100 | SES800Ⅱ-4T45 | 45 |
| SES-18275-SNS | 17.5 | 275 | SM270-17Z | 48 | QT6N-125 | 125 | SES800Ⅱ-4T55 | 55 |
| SES-18310-SNS | 17.5 | 310 | SM370-15Z | 58 | QT8N-160 | 160 | SES800Ⅱ-4T75 | 75 |
4. Quality assurance

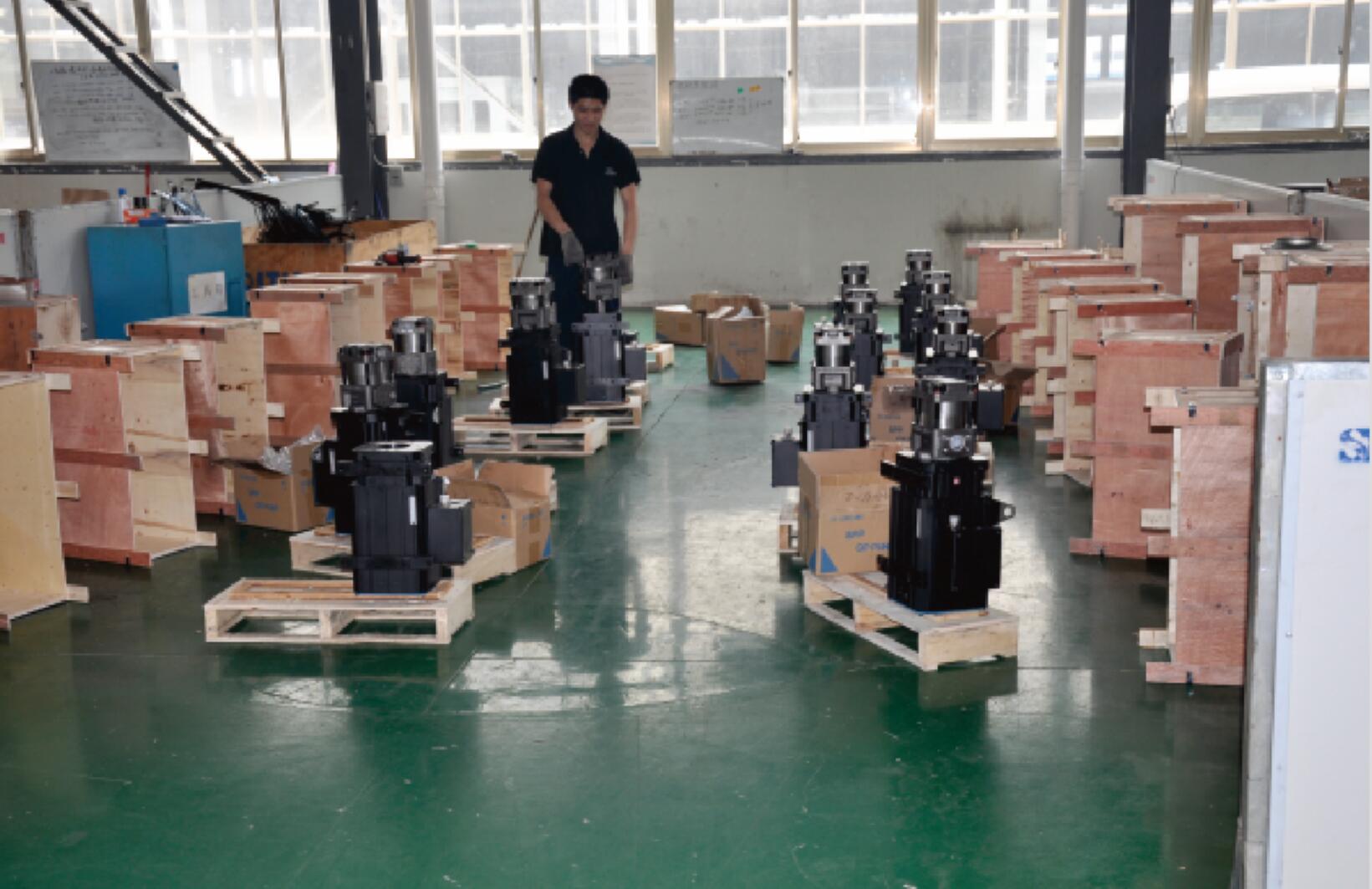

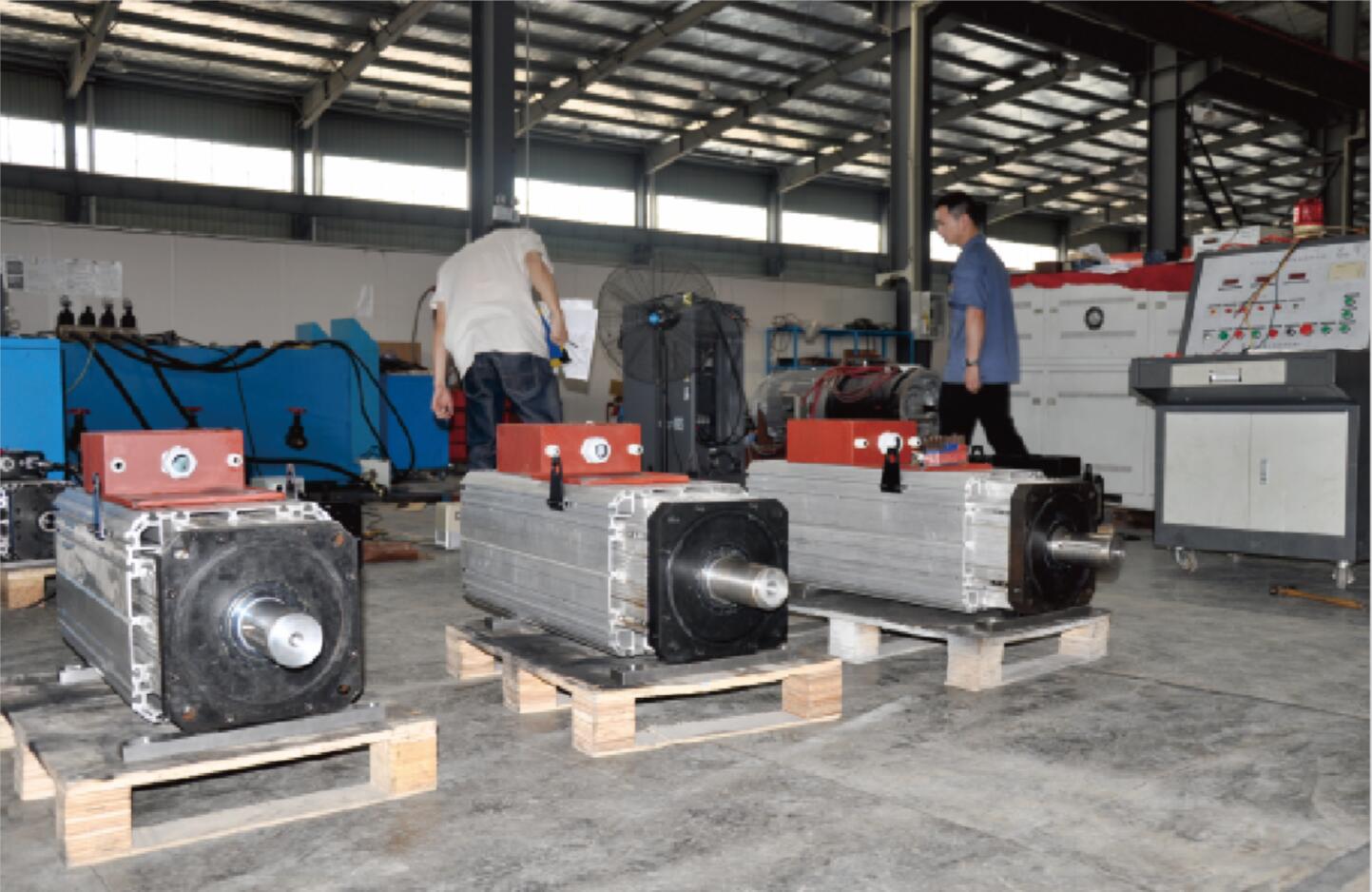

Servo Motor Production Servo Motor Dectection

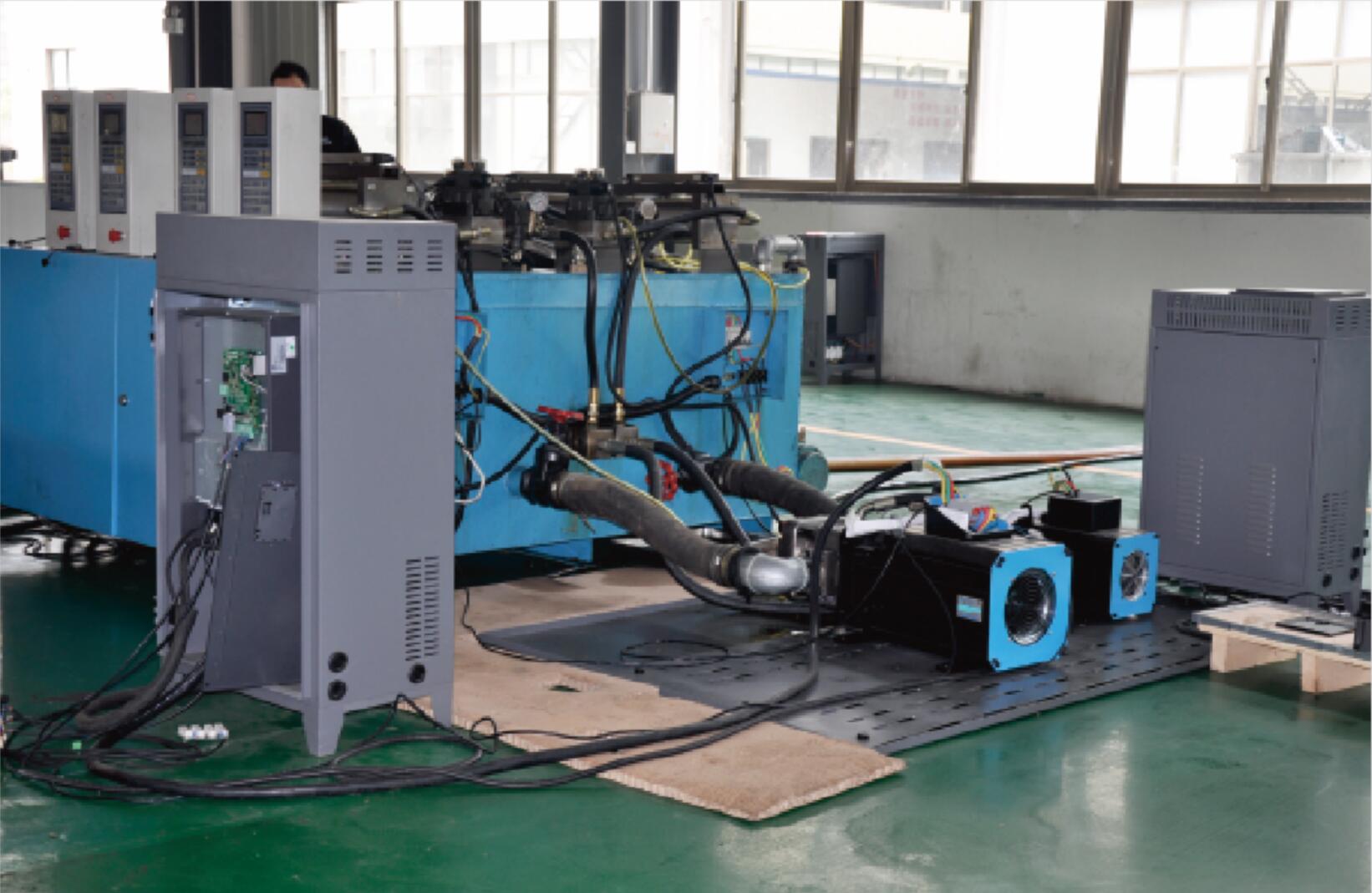

Servo System Assembling Servo System testing

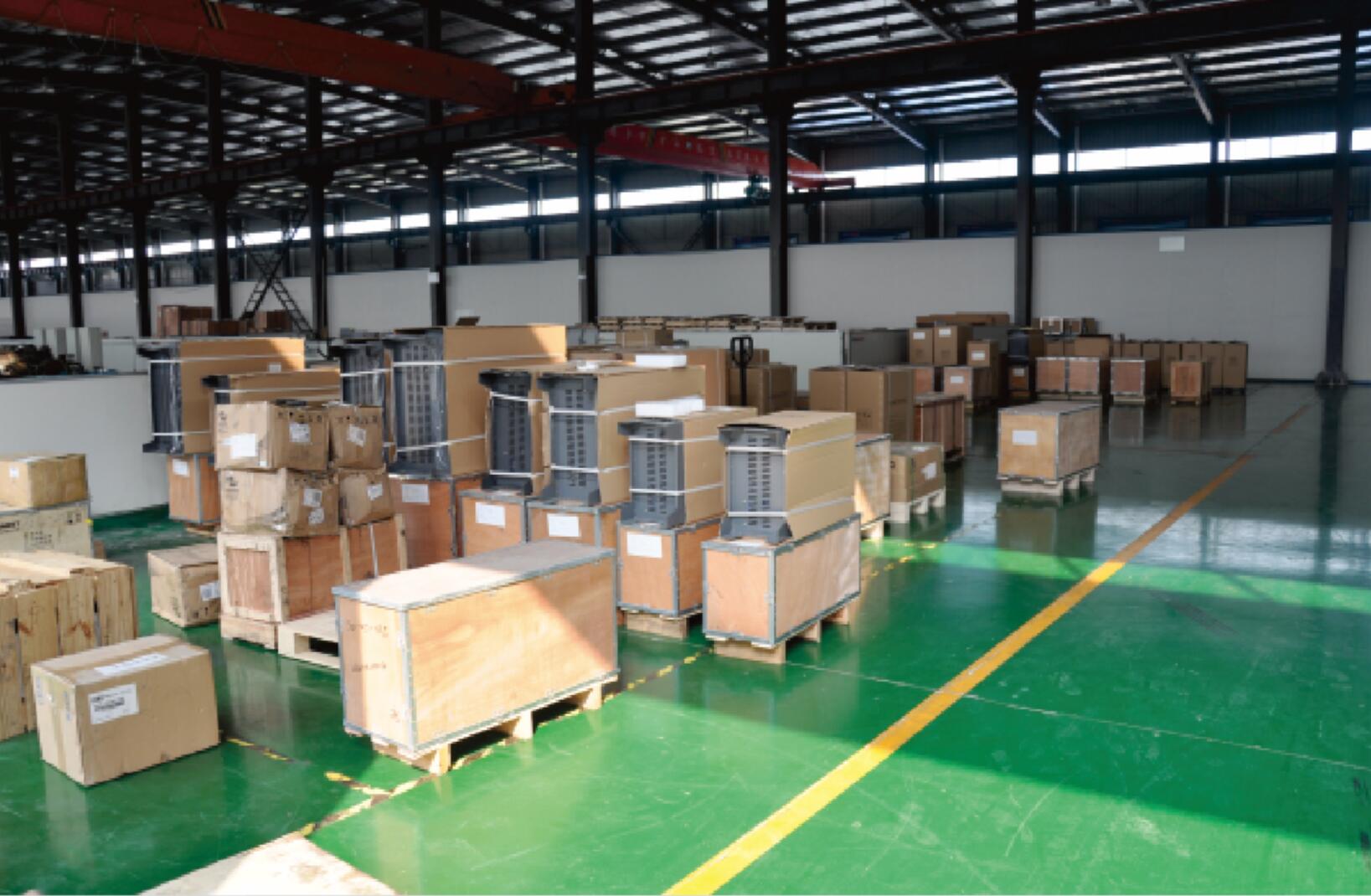

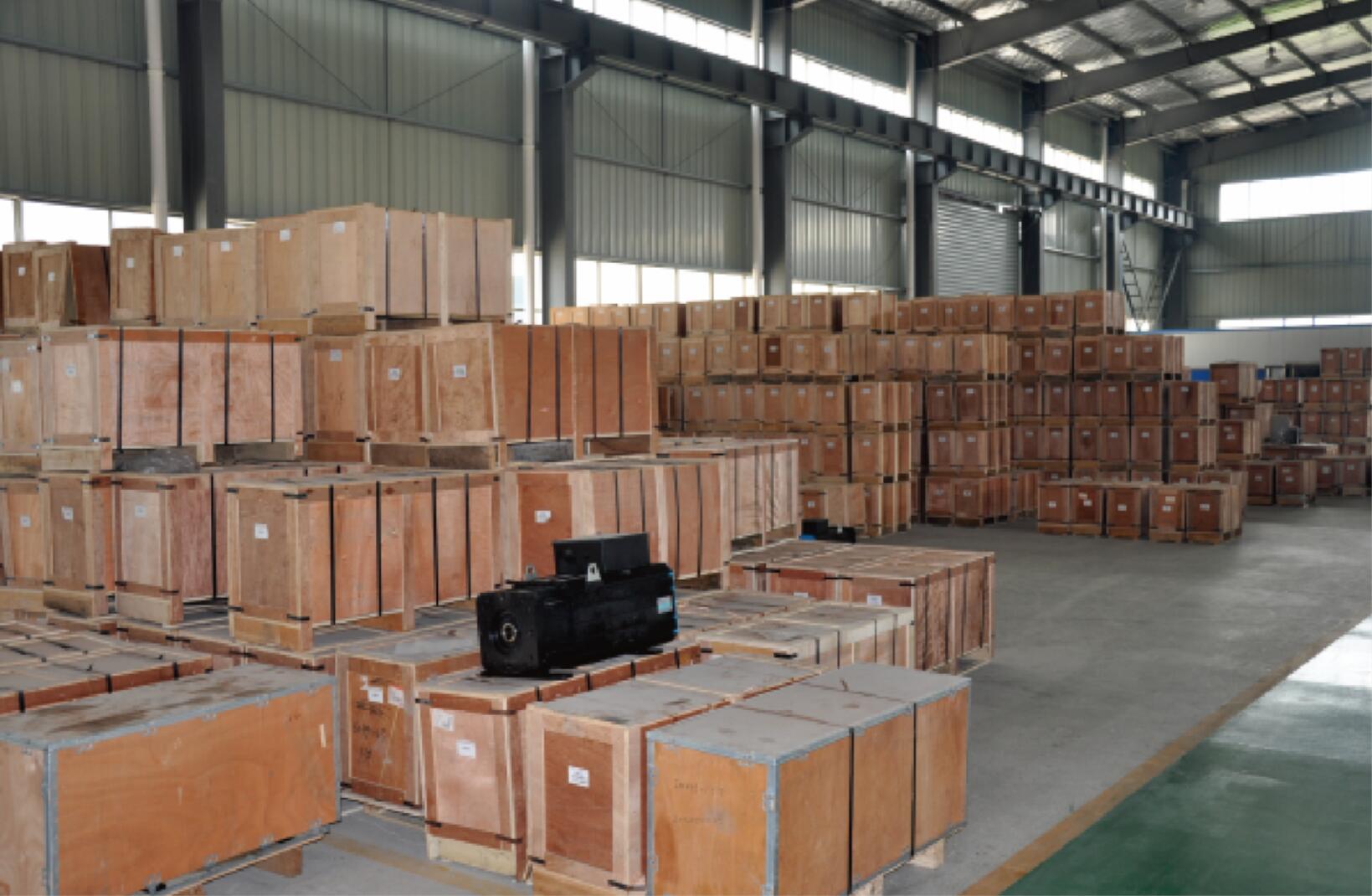

System Packaging Keep in storage
5. Promise
If the energy saving rate is not good, don’t need to pay
If the servo system performance is not good, don’t need to pay
If the installation service is not good, don’t need to pay
The desire to save energy is delivered to us, SEBOS is your loyal parter
